The Klettersteig shape takes the strength and volume increases of an Offset D and then extends them even further to give a high volume, super-strong connector. The Klettersteig’s wide gate opening makes it particularly suitable for clipping oversize items, or simply allows ease of use in more normal situations.
| Product Name | Product Code | Colour | MBS (Major Axis) | MBS (Minor Axis) | MBS (Gate Open) | Dimensions | Weight | Gate Opening (X) | Certification | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
|
12mm Klettersteig Screwgate - C842
|
C842 | Light Gold | 45kN | 12kN | 12kN | 76 x 126mm | 266g | 25mm | EN 362:2004 B, EN EN12275:2013 B |
£17.99
|
|
|

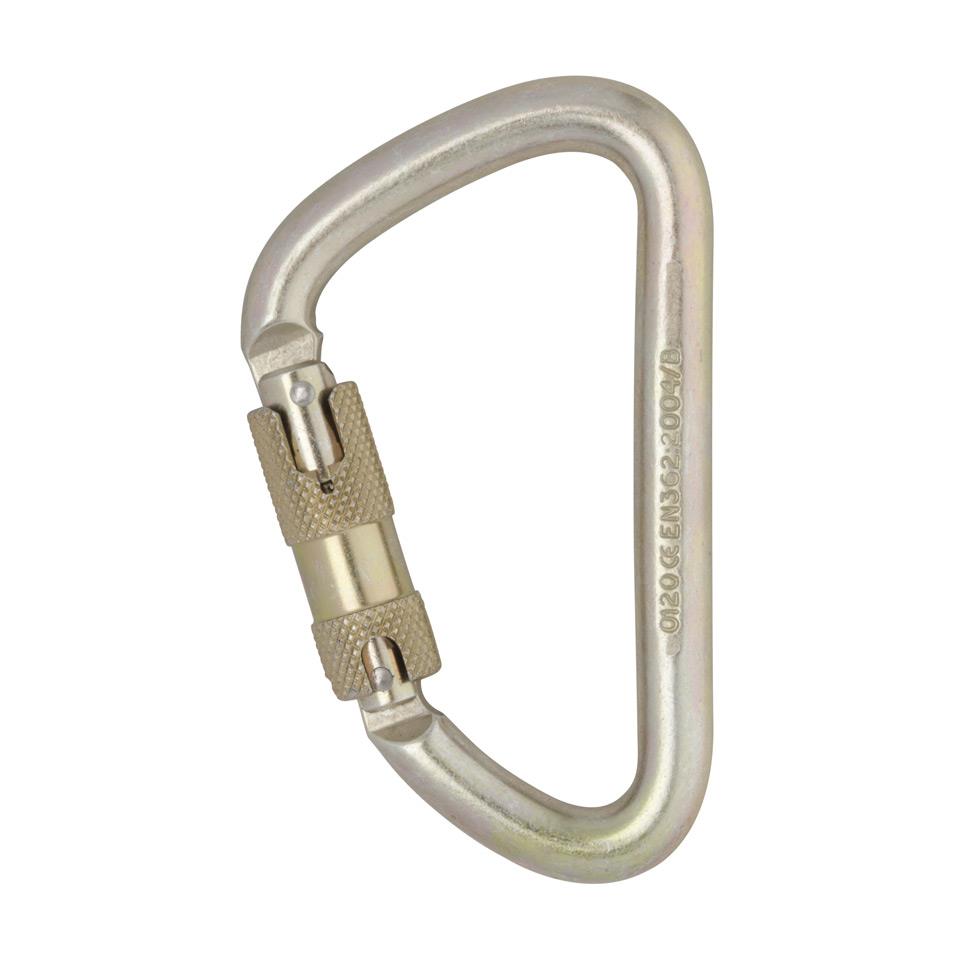

12mm Klettersteig Kwiklock - C843
|
C843 | Light Gold | 45kN | 12kN | 12kN | 76 x 126mm | 278g | 23mm | EN 362:2004 B/K, EN EN12275:2013 B & K |
£21.99
|
|
|
12mm Klettersteig Kwiklock ANSI - C843ANSI
|
C843ANSI | Light Gold | 45kN | 16kN | 12kN | 76 x 126mm | 293g | 23mm | EN 362:2004 B/K, EN EN12275:2013 B & K, ANSI/ASSE Z359.12-2019, CAN/CSA Z259.12-16 |
£23.99
|
|
|

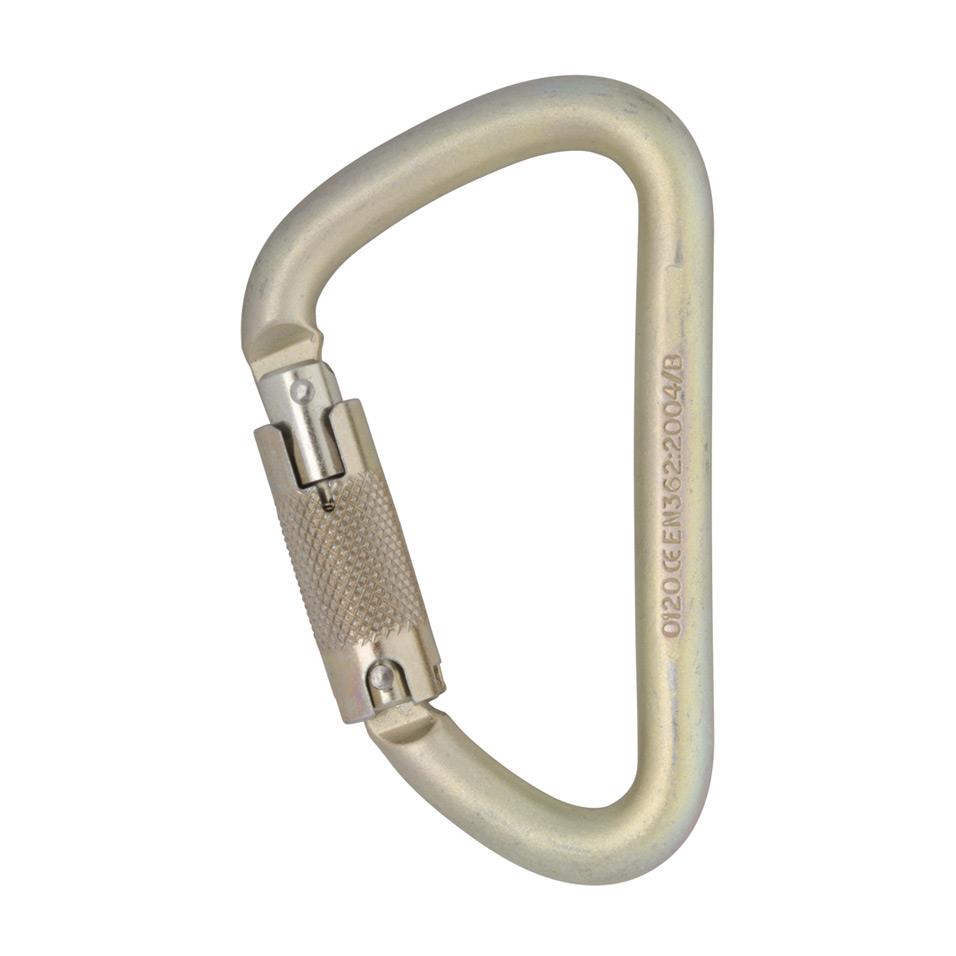

12mm Klettersteig Locksafe - C847
|
C847 | Light Gold | 45kN | 12kN | 12kN | 76 x 126mm | 283g | 23mm | EN 362:2004 B/K, EN EN12275:2013 B & K |
£22.99
|
|
|
12mm Klettersteig Locksafe Captive Bar - C847CB
|
C847CB | Light Gold | 45kN | 12kN | 12kN | 76 x 126mm | 284g | 23mm | EN362:2004 B/T/K, EN12275:2013 B/T/K |
£24.50
|
|
|
12mm Klettersteig Locksafe ANSI - C847ANSI
|
C847ANSI | Light Gold | 45kN | 16kN | 12kN | 76 x 126mm | 295g | 21mm | EN 362:2004 B/K, EN EN12275:2013 B & K, ANSI/ASSE Z359.12-2019, CAN/CSA Z259.12-16 |
£24.99
|
|
|

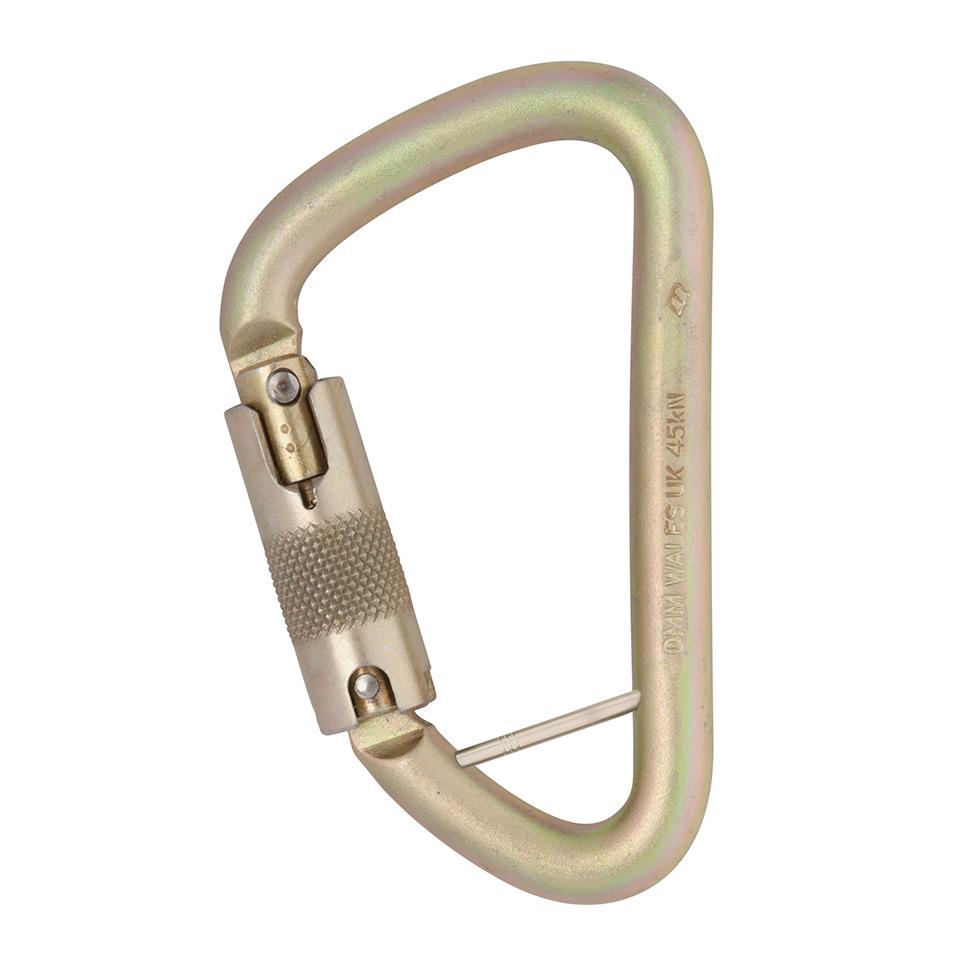

12mm Klettersteig Locksafe Captive Bar ANSI - C847CBANSI
|
C847CBANSI | Light Gold | 45kN | 16kN | 12kN | 76 x 126mm | 296g | 21mm | EN362:2004 B/T/K, EN12275:2013 B/T/K, ANSI/ASSE Z359.12-2019, CAN/CSA Z259.12-16 |
£26.50
|
