A long standing favourite in our height safety range, the 10mm steel Equal D connector strikes a perfect balance between strength, weight and usability. The subtle D shaped back design helps maximise strength by placing the load close to the spine of the carabiner making it ideal for applications requiring a rugged, compact and strong connector.
| Product Name | Product Code | Colour | MBS (Major Axis) | MBS (Minor Axis) | MBS (Gate Open) | Dimensions | Weight | Gate Opening (X) | Certification | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
|
10mm Equal D Screwgate - C412
|
C412 | Light Gold | 30kN | 9kN | 10kN | 54 x 105mm | 172g | 15mm | EN362:2004 B, EN12275:2013 B |
£14.50
|
|
|

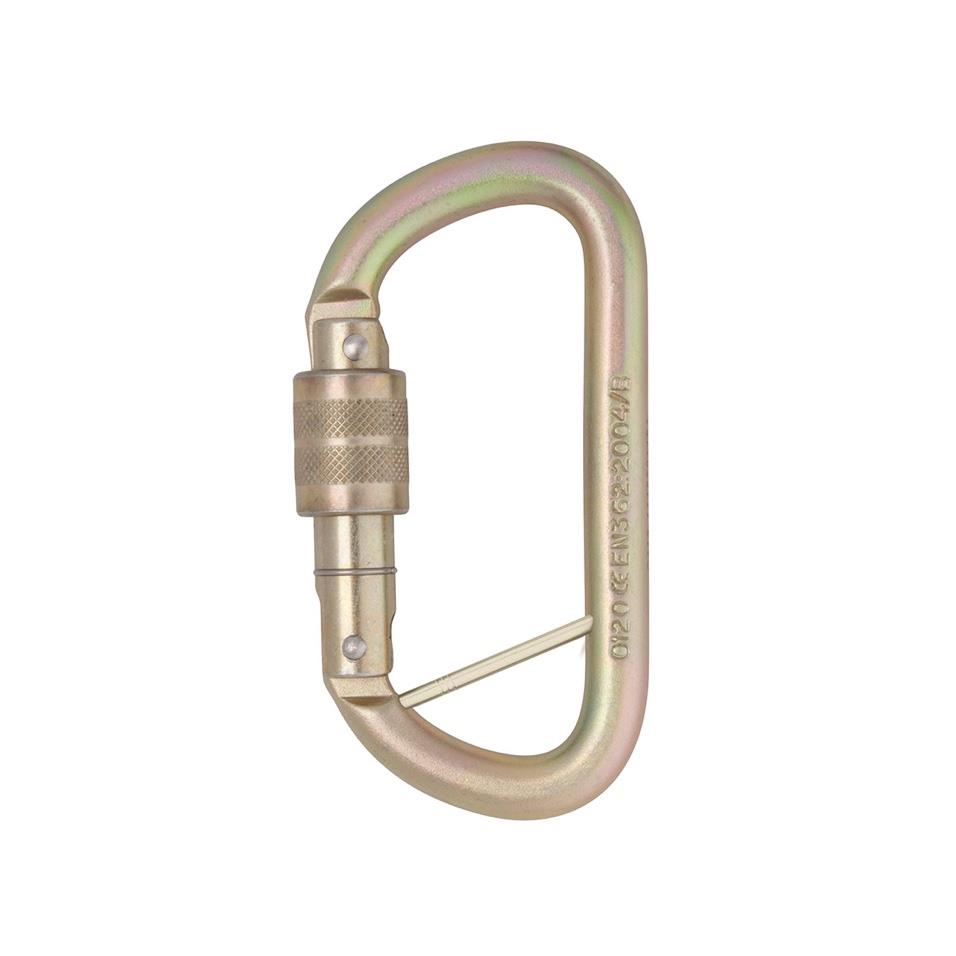

10mm Equal D Screwgate Captive Bar - C412CB
|
C412CB | Light Gold | 30kN | 9kN | 10kN | 54 x 105mm | 172g | 15mm | EN362:2004 B/ T, EN12275:2013 B/T |
£15.99
|
|
|

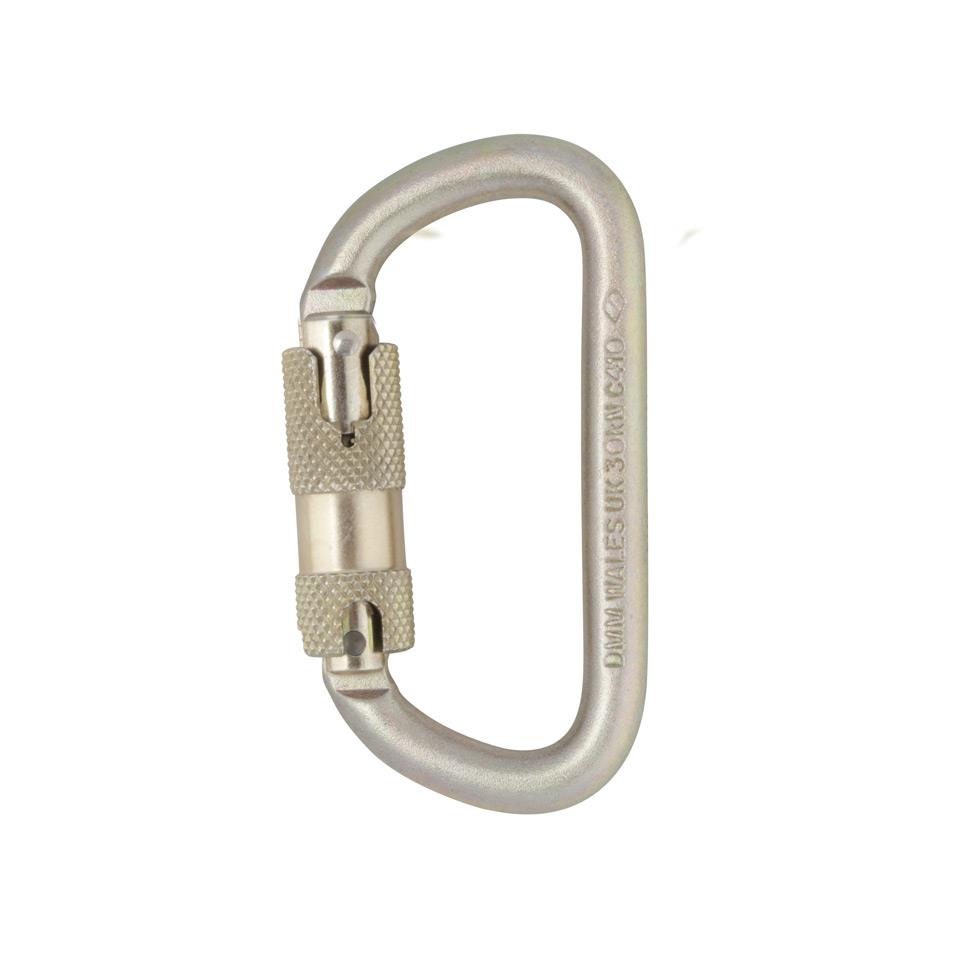

10mm Equal D Kwiklock - C413
|
C413 | Light Gold | 30kN | 9kN | 10kN | 54 x 105mm | 187g | 15mm | EN362:2004 B |
£18.50
|
|
|

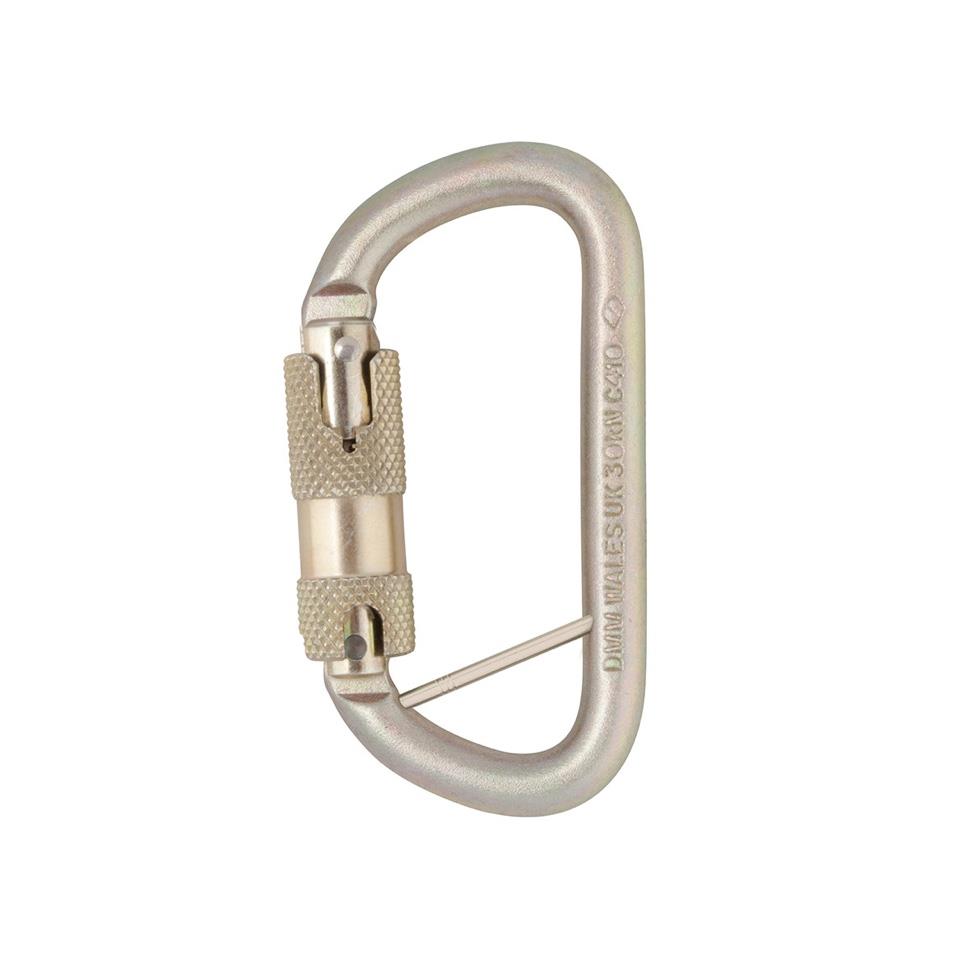

10mm Equal D Kwiklock Captive Bar - C413CB
|
C413CB | Light Gold | 30kN | 9kN | 10kN | 54 x 105mm | 187g | 15mm | EN362:2004 B/T |
£19.99
|
|
|
10mm Equal D Locksafe - C417
|
C417 | Light Gold | 30kN | 9kN | 10kN | 54 x 105mm | 190g | 15mm | EN 362:2004 B |
£19.50
|
|
|

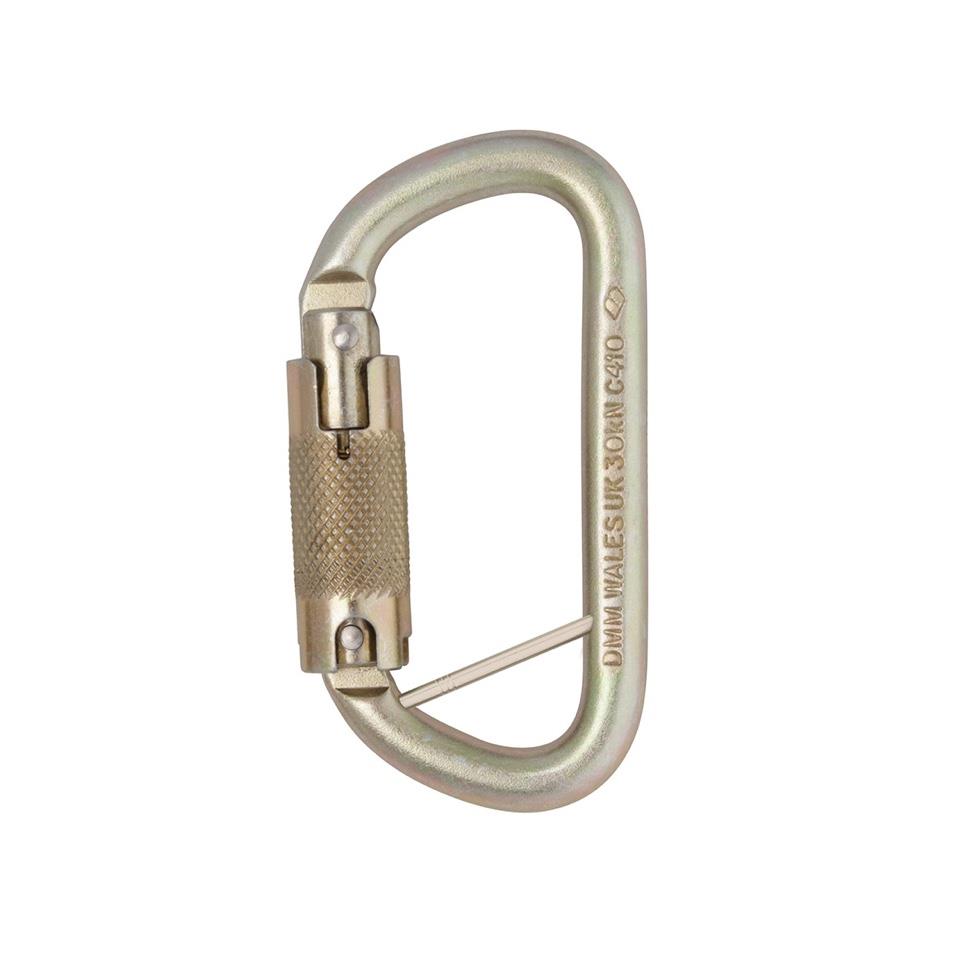

10mm Equal D Locksafe Captive Bar - C417CB
|
C417CB | Light Gold | 30kN | 9kN | 10kN | 54 x 105mm | 190g | 15mm | EN362:2004 B/T |
£20.99
|
D-shaped connector bodies are designed to force the loads closer to the spine of the connector (the strongest orientation), therefore maximising strength. These are probably the most basic of all connectors in terms of shape, but this makes them a perfect choice in applications where strength and simplicity are paramount.
