An evolution of the Triple Attachment Pulley first brought to the market 10 years ago by DMM.
The hot forged swing-cheek pulley with an in-built three hole rigging plate allows creative configurations and enables direct connection to textile components to save on weight and complication. The Rigger Pulleys feature a new axle construction achieved by using highly accurate CNC operations, which produces a stronger axle/side plate interface for increased longevity.
Bolstered connection areas lead to high configured strengths. The newly developed side plates combined with the axle construction means a hugely increased MBS to 40kN. The side plates boast increased fairleads and tuned angles for more efficient prusik minding.
The Rigger Pulley comes in two versions; the Rigger and the Rigger Becket. Both feature high efficiency roller bearings.
| Product Name | Product Code | Rope Range | Dimensions | Sheave Diameter | Weight | WLL | MBS | Certification | Price | |
|---|---|---|---|---|---|---|---|---|---|---|
|
Rigger Pulley - PUL400
|
PUL400 | 7-14mm | 68 x 94mm | 28mm | 176g | 8kN | 40kN | EN12278:2007 |
£64.99
|
|
|

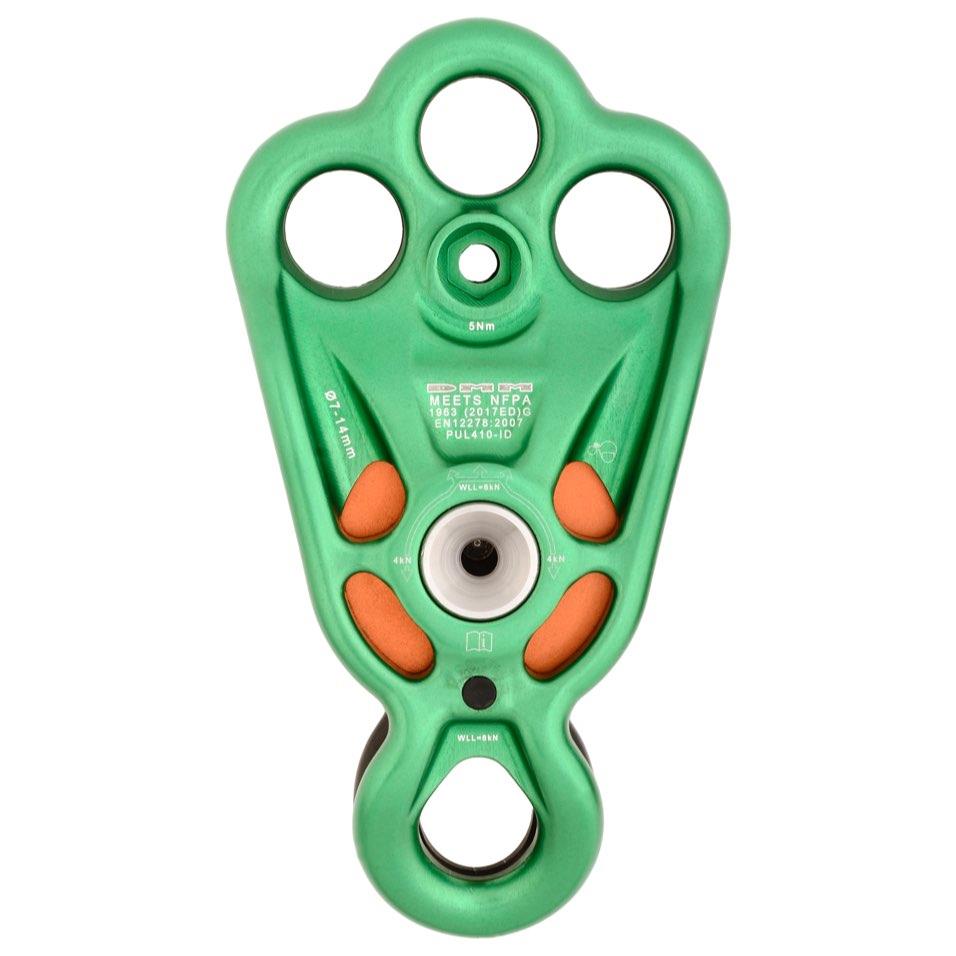

Rigger Pulley Becket - PUL410
|
PUL410 | 7-14mm | 68 x 124mm | 28mm | 198g | 8kN | 40kN | EN12278:2007 |
£84.99
|
|
|

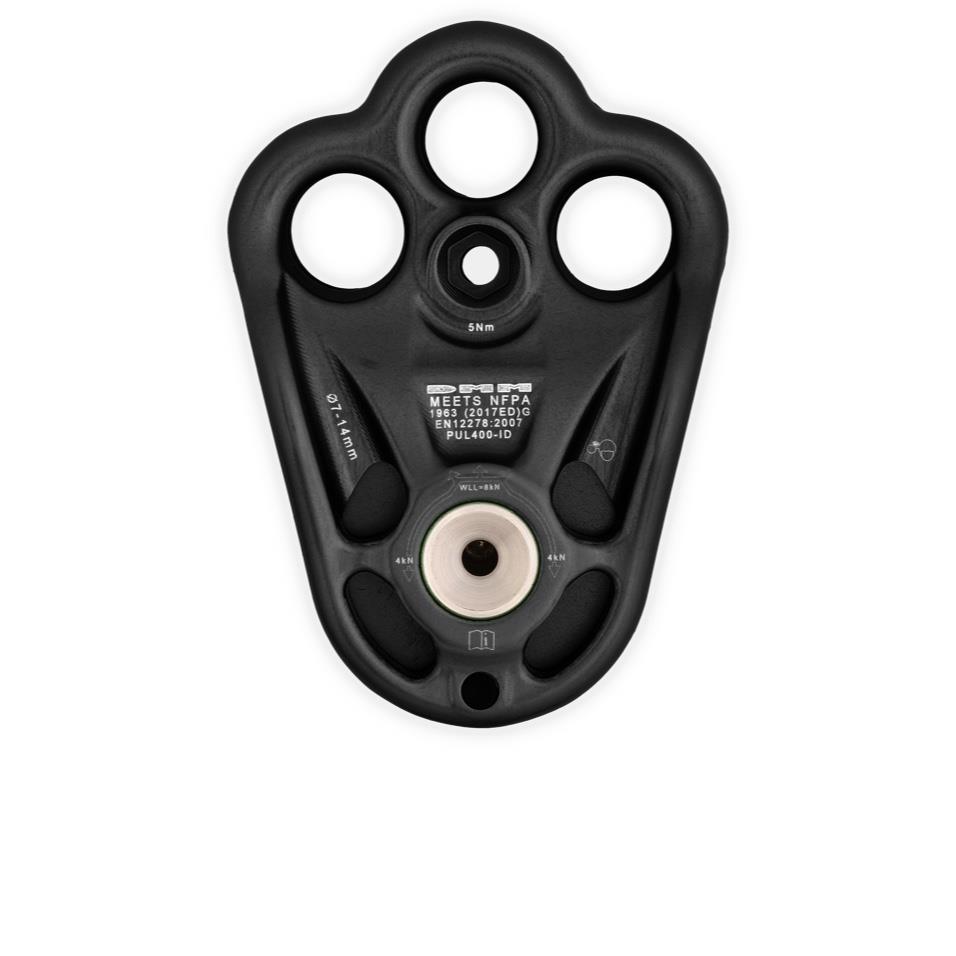

Rigger Pulley - PUL400MG
|
PUL400MG | 7-14mm | 68 x 94mm | 28mm | 176g | 8kN | 40kN | EN12278:2007 |
£64.99
|
|
|

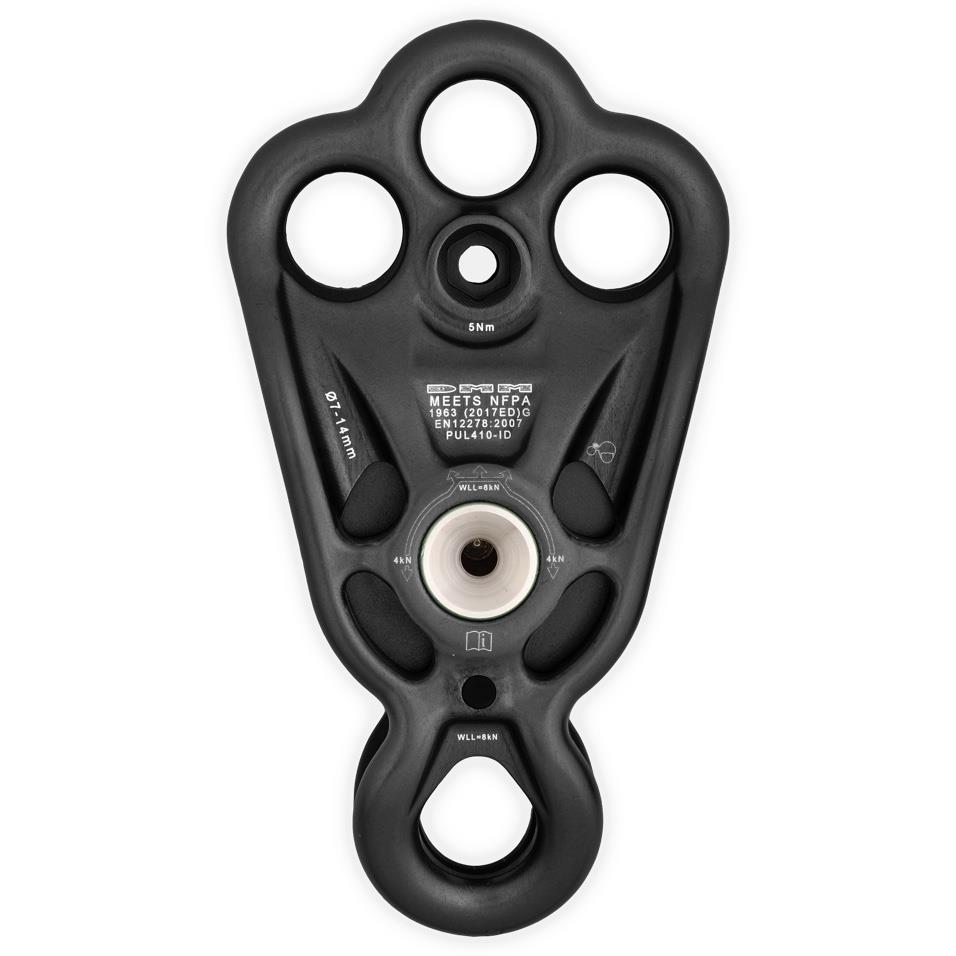

Rigger Pulley Becket - PUL410MG
|
PUL410MG | 7-14mm | 68 x 124mm | 28mm | 198g | 8kN | 40kN | EN12278:2007 |
£84.99
|
