A connector with an integrated pulley sheave. It features a high efficiency roller bearing sheave(s), threaded removable captive bar and a full strength textile friendly becket.
The uniquely profiled spine and captive bar aid in maintaining correct orientation.
The design of the Revolver Rig is such that when using a connector attached to the becket any friction between the connector and rope is minimised.
| Product Name | Product Code | Colour | MBS Major Axis | MBS Minor Axis | MBS Gate Open | WLL | Dimensions | Weight | Max. Rope Diameter | Certification | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
Revolver Rig Screwgate - A5821CB
|
A5821CB | Grey/Lime | 25kN | 7kN | 7kN | 5kN | 76 x 161mm | 196g | EN12278:2007, EN362:2004 B/T |
£81.99
|
||
|
Revolver Rig Locksafe - A5871CB
|
A5871CB | Grey/Green | 25kN | 7kN | 7kN | 5kN | 76 x 161mm | 203g | EN12278:2007, EN362:2004 B/T |
£84.99
|
||
|
Revolver Rig Durolock - A5841CB
|
A5841CB | Grey/Purple | 25kN | 7kN | 7kN | 5kN | 76 x 161mm | 213g | EN12278:2007, EN362:2004 B/T |
£89.99
|
||
|

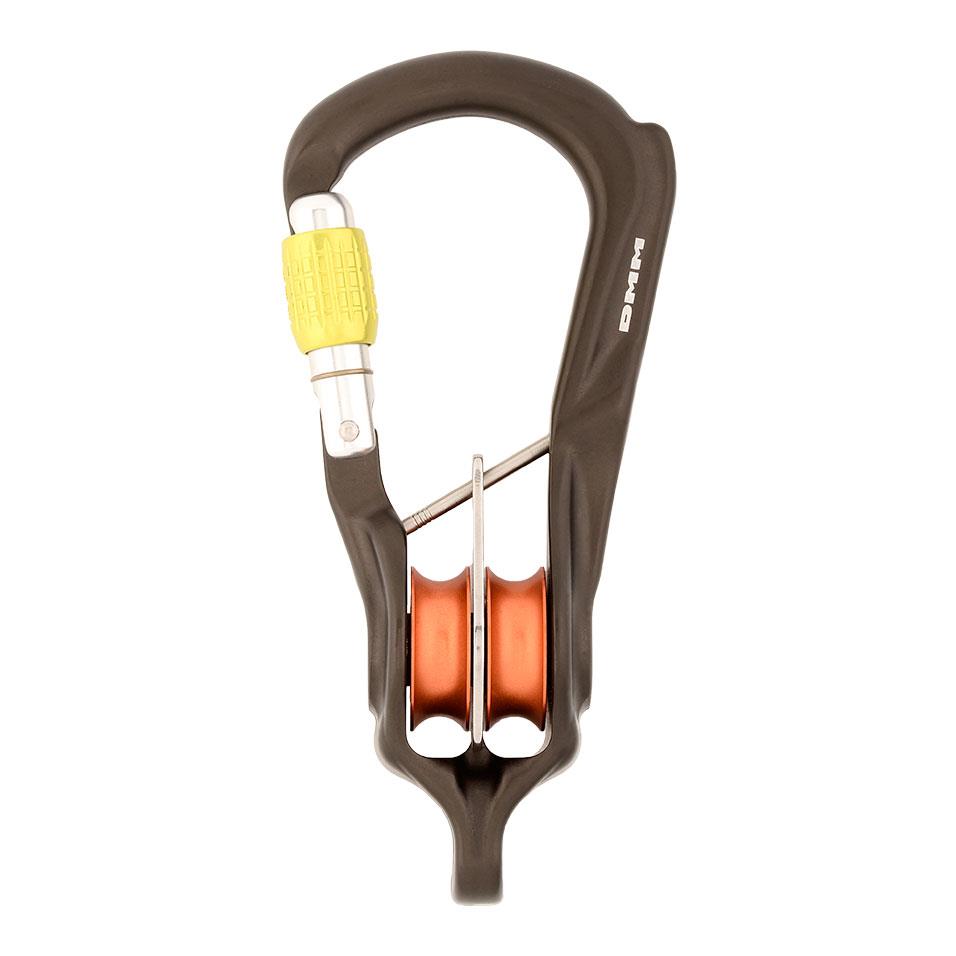

Revolver Rig Twin Screwgate - A5822CB
|
A5822CB | Grey/Lime | 25kN | 7kN | 7kN | 5kN | 76 x 161mm | 214g | EN12278:2007, EN362:2004 T |
£86.99
|
||
|

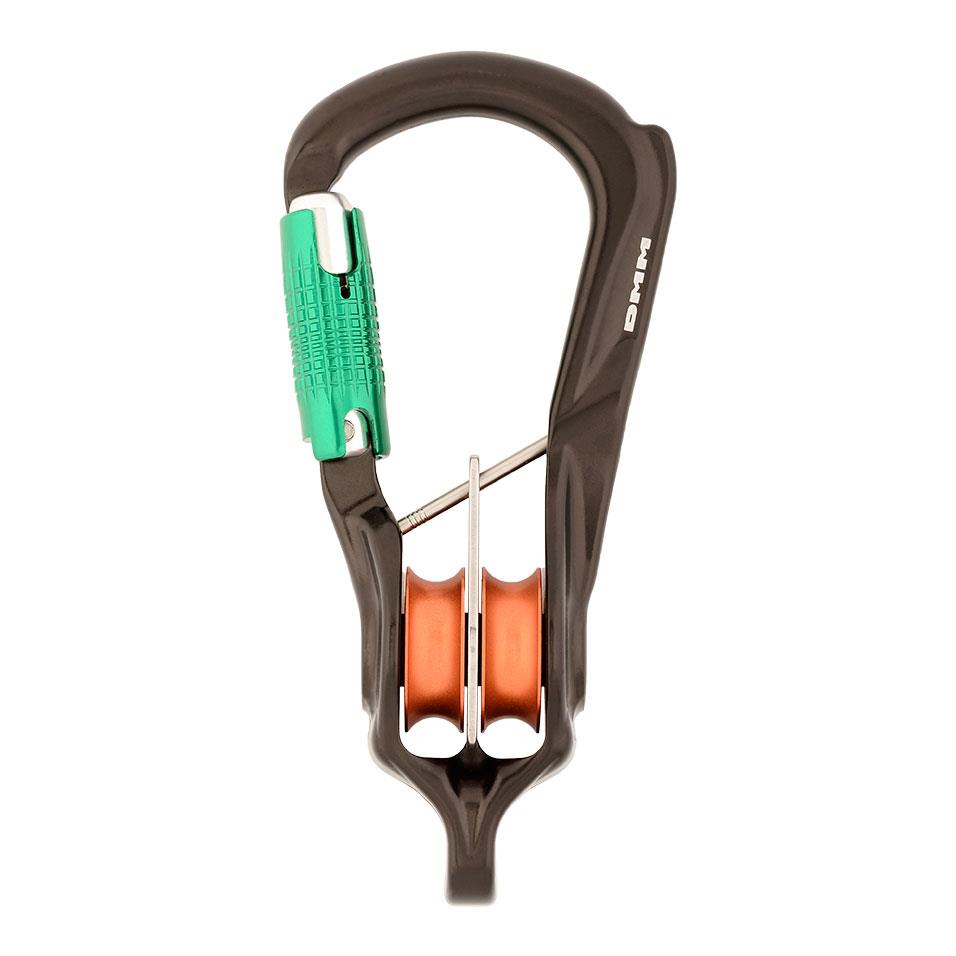

Revolver Rig Twin Locksafe - A5872CB
|
A5872CB | Grey/Green | 25kN | 7kN | 7kN | 5kN | 76 x 161mm | 219g | EN12278:2007, EN362:2004 T |
£89.99
|
||
|

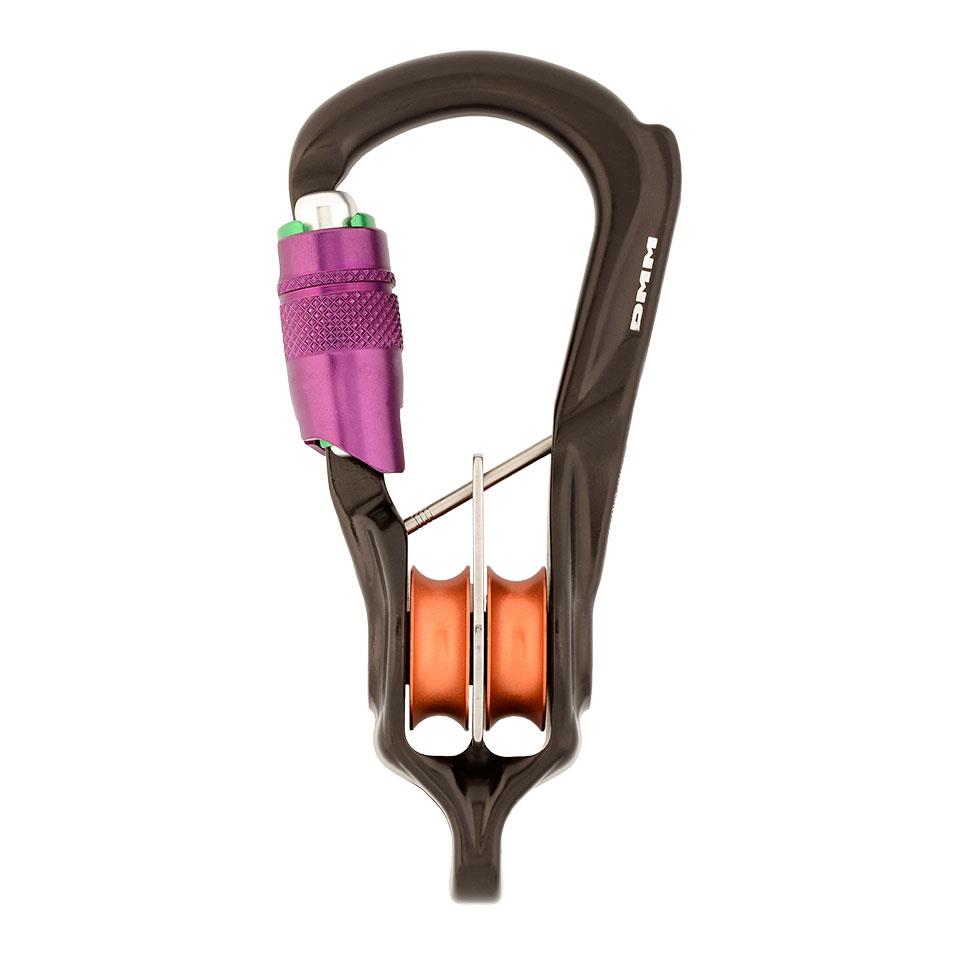

Revolver Rig Twin Durolock - A5842CB
|
A5842CB | Grey/Purple | 25kN | 7kN | 7kN | 5kN | 76 x 161mm | 226g | EN12278:2007, EN362:2004 T |
£94.99
|
